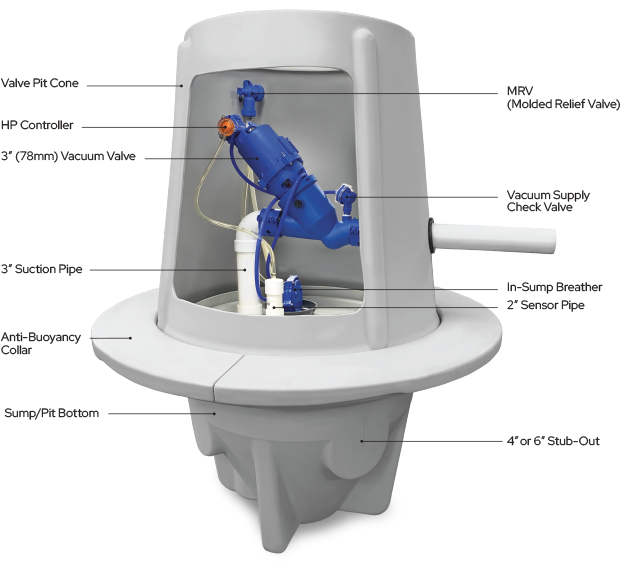

Airvac’s Hybrid PE Valve Pit: A Durable, Corrosion-Resistant Solution for Any Project
Considered our global standard product, Airvac’s Hybrid PE Valve Pit is available in 3 sizes. It can be shipped in two pieces for freight considerations or as a fully assembled piece with all the components preinstalled.
Additional Options:
Depths are Available in 3 sizes:
- 6 ft (1029L),
- 8 ft (1306L),
- 10 ft (1654L).
Available in H20 Traffic Rated or Non-traffic rated models.

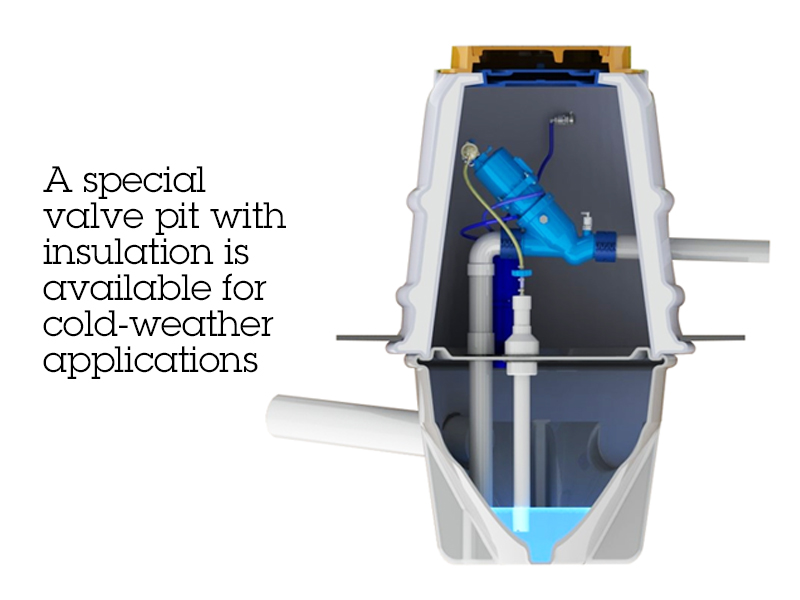

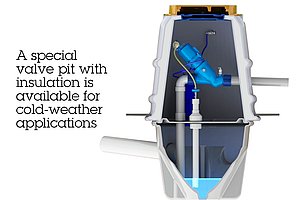

Available as a Cold Weather Valve Pit option.
Two anti-buoyancy collar options:
- 1 piece, 1-inch (25mm) thick sheet PE anti-buoyancy collar
- 2-piece, Bolt-together PE anti-buoyancy collar.
- Includes APE Foam Strip: Seals the joint between the valve pit cone and the sump.
Traffic Rated Valve Pit Covers:
- Airvac valve pit covers and frames, used for all valve pit installations, are H20 and AS 3996 Class ‘D’ traffic rated.
